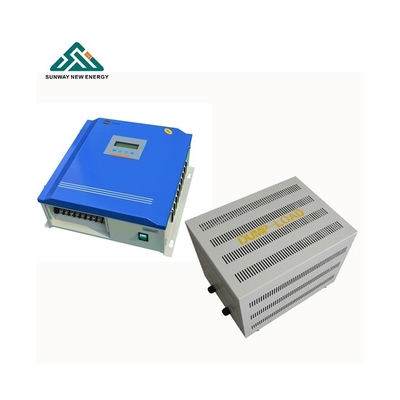

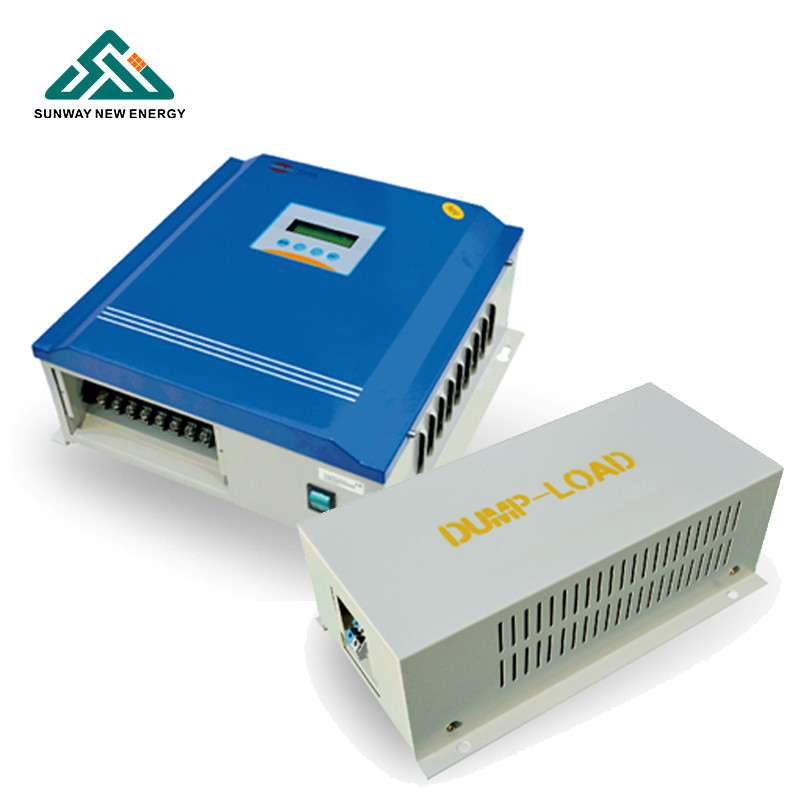

Grid-Tied Wind Power Controller 3KW/5KW – Compatible with Grid-Connected Wind Systems

Grid-Tied Wind Power Controller 3KW/5KW – Compatible with Grid-Connected Wind Systems

Ürün ayrıntıları:

Menşe yeri: Anhui, Çin
Marka adı: SUNEVER
Model numarası: SWC-3048VTA

Ödeme & teslimat koşulları:

Fiyat: $285.00/pieces 1-9 pieces
Ambalaj bilgileri: karton kutu<br> Toptan 1kw 2kw 3kw 24v 48v 96v mppt rüzgar ve güneş hibrid rüzgar jeneratörü şarj re
Yetenek temini: Ayda 600 Adet/Adet
En iyi fiyat İletişim

Detay Bilgi
Rüzgar Enerjisi Kontrol Cihazı Tipi: ızgarada Rüzgar Enerjisi Kontrol Cihazı Sertifikası: CE, ISO
Rüzgar Enerjisi Kontrol Cihazı Garantisi: 36 ay Rüzgar Enerjisi Kontrol Cihazı Anma gücü: 3KW 5KW
Görüntülemek: LCD+LED Tip: PWM, Şebekeden bağımsız rüzgar ve güneş hibrit kontrol cihazı
Vurgulamak:

Grid-Tied Wind Power Controller 3KW

,

5KW wind power controller grid-connected

,

wind system controller with warranty

Ürün Açıklaması

  1. Grid-Tied Wind Power Controller 3KW/5KW – Compatible with Grid-Connected Wind Systems
Grid-Tied Wind Power Controller 3KW/5KW – Compatible with Grid-Connected Wind Systems 0
Grid-Tied Wind Power Controller 3KW/5KW – Compatible with Grid-Connected Wind Systems 1

FEATURES:

Core Electrical Design

  1. Adopts common positive polarity connection, with dual-line support for solar arrays
  2. Digital design combined with modular structure, ensuring high stability and reliability
  3. Wind turbine brake parameters are programmable via user keys
  4. Equipped with a backlit LCD screen to display real-time system operating parameters
  5. High energy conversion efficiency enabled by PWM charging technology

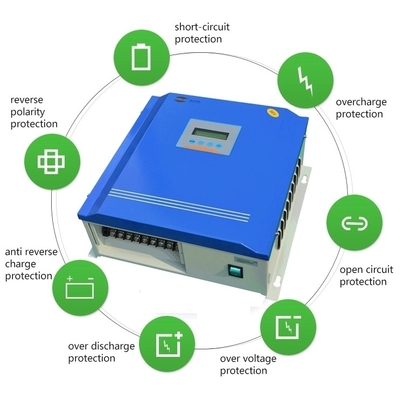

Comprehensive Protection Mechanisms

  1. Integrates multiple protection features: reverse connection protection, anti-reverse charging at night, battery overcharge protection, and charging current/voltage limiting protection
  2. Supports personalized configuration of Battery Management System (BMS) parameters and charging control strategies
  3. Intelligent alarm function triggers promptly when the system is in abnormal status
  4. Optional data communication module available for remote monitoring and management
  5. Built-in intelligent cooling system to ensure continuous and stable operation of the equipment
Grid-Tied Wind Power Controller 3KW/5KW – Compatible with Grid-Connected Wind Systems 2
Model
1KW/24V,48V
2KW/48V,96V
3KW/48V,96V
Wind-turbine power[KW]
1
2
3
Rated wind-turbine voltage[V]
28.8 ; 57.6 ; 115.2 ; 144; 288






Electrical parameters



Consumption at standby [mA]
≤60


Consumption at night [mA]
≤20


Operating Temperature Range
-25ºC ~ +60ºC


Cooling Method
Convection with double cooling fans


Operating temperature
0%~98% Non-condensing


Terminal
Barrier terminal


Data-transfer port
RS485/232/WIFI/GPRS


Mounting
Wall


Main dimension(W*D*H)[mm]
380*355*150


Main-device net weight [kg]
8.5


Dump dimension(W*D*H)[mm]
440*160*170
440*240*150
440*240*150
Dump-load net weight [kg]
4
7
8.5
Grid-Tied Wind Power Controller 3KW/5KW – Compatible with Grid-Connected Wind Systems 3
Grid-Tied Wind Power Controller 3KW/5KW – Compatible with Grid-Connected Wind Systems 4
Grid-Tied Wind Power Controller 3KW/5KW – Compatible with Grid-Connected Wind Systems 5
Grid-Tied Wind Power Controller 3KW/5KW – Compatible with Grid-Connected Wind Systems 6


Grid-Tied Wind Power Controller 3KW/5KW – Compatible with Grid-Connected Wind Systems 7
Grid-Tied Wind Power Controller 3KW/5KW – Compatible with Grid-Connected Wind Systems 8
Grid-Tied Wind Power Controller 3KW/5KW – Compatible with Grid-Connected Wind Systems 9
Grid-Tied Wind Power Controller 3KW/5KW – Compatible with Grid-Connected Wind Systems 10
Grid-Tied Wind Power Controller 3KW/5KW – Compatible with Grid-Connected Wind Systems 11



Package details

Grid-Tied Wind Power Controller 3KW/5KW – Compatible with Grid-Connected Wind Systems 12
Grid-Tied Wind Power Controller 3KW/5KW – Compatible with Grid-Connected Wind Systems 13
Grid-Tied Wind Power Controller 3KW/5KW – Compatible with Grid-Connected Wind Systems 14
Grid-Tied Wind Power Controller 3KW/5KW – Compatible with Grid-Connected Wind Systems 15
Q1:Are you a factory or trade company?
We are a factory who has more than 10 years experience in manufacturing; strong aftersale service team and technical support. Free design according to client requirements.
Q2:Whats the MOQ? We have stock and semi-finished products with enough base materials for new sampleand order for all models, So small quantity order is accepted, it can meet your require.ment very well.
Q3:Why others price much cheaper? We try our best to ensure our quality to be the best one in the same level price products. We believe safety and effectiveness are the most important.
Q4:Can I have a sample for testing?
Yes, you are welcome to test samples before quantity order; Sample order will be sentout 2-3 days generally.
Q5:Can Iadd my logo on the products?
Yes,OEM and ODM are available for us. But you should send us the Trademark authori-zation letter.
Q6 :Do you have inspection procedures?
100% self-inspection before packing.
